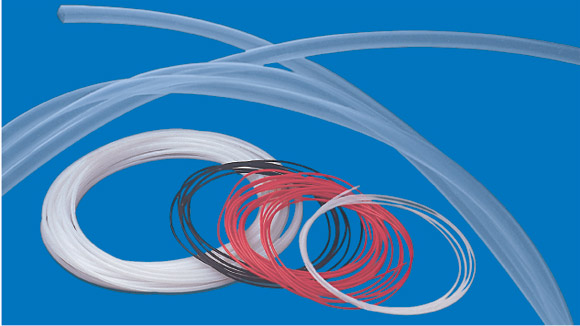

FEP Tubing

FEP Tubing

Kaxite Sealing's FEP Tubing offers superior chemical resistance and flexibility for demanding applications in labs, medical, and industrial settings. Its high-purity material ensures reliable performance, solving contamination and durability issues with ease. Experience unmatched quality that stands out from competitors, delivering peace of mind and efficiency in every use. Trust Kaxite Sealing for premium FEP Tubing solutions.
Send Inquiry
Product Description
[ Features ]
FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.
FEP Tubing
[ Specifications ]
Unit mm
outside diameter
Tolerance
wall thickness
Tolerance
outside diameter
Tolerance
wall thickness
Tolerance
1
0.08
0.2
0.05
16
0.20
1.0
0.15
2
0.08
0.2
0.05
18
0.20
1.0
0.15
3
0.10
0.4
0.06
20
0.40
1.0
0.15
4
0.10
0.4
0.06
25
0.40
1.5
0.20
5
0.10
0.5
0.10
32
0.50
1.5
0.20
6
0.10
0.5
0.10
36
0.50
2.0
0.20
8
0.20
0.5
0.10
40
0.50
2.0
0.20
10
0.20
1.0
0.15
50
0.50
2.0
0.20
12
0.20
1.0
0.15
65
0.80
3.0
0.30
14
0.20
1.0
0.15
80
1.00
3.0
0.40
[ Main properties ]
Properties
Unit
Result
electricity gas
be current
Tensile strength
Mpa
14
14
Ultimate Elongation
%
175
175
Dialectric Strength 0.2mm
wall 0.4mm
thickness 0.5mm
MV/m
30
25
24
--
--
--
[ Applications ]
Can be long term used under the temperature from -80 - 200.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.
Hot Tags: FEP tubing manufacturer, PTFE tubing supplier, heat resistant tubing wholesale
