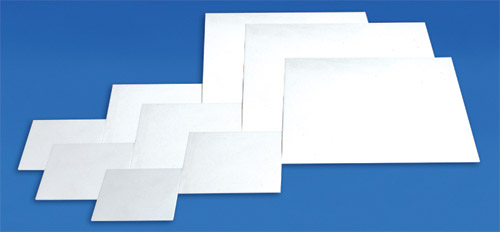

PTFE Resin Moded Sheet

Discover Kaxite Sealing's PTFE Resin Molded Sheet: An innovative solution for high-performance sealing and insulation in demanding industries. This sheet boasts exceptional chemical resistance, durability, and low friction, making it ideal for engineers and professionals seeking reliable performance in automotive, chemical processing, or industrial applications. Experience enhanced efficiency and peace of mind with our uniquely engineered material that outperforms standard options, delivering long-lasting quality and solving your toughest sealing challenges.

Send Inquiry

Product Description

With professional PTFE Resin Moded Sheet factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Resin Moded Sheet manufacturers and suppliers.

[ Features ]

PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180%°C - +260°C.

[ Specifications ]

Length(mm)×Width(mm)	Thickness(mm)
Length(mm)×Width(mm)	Nominal	Tolerance
150×150	1.0-30	±0.30-±0.50
250×250	1.5-30	±0.30-±0.50
300×300	1.5-30	±0.30-±0.50
450×450	1.5-30	±0.30-±0.50
600×600	2-30	±0.30-±0.50
800×800	3-30	±0.30-±0.50
1000×1000	3-30	±0.30-±0.50
1200×1200	3-30	±0.30-±0.50
1000×2000	5-35	±0.30-±0.60
1500×1500	5-30	±0.30-±0.50
1800×1800	8-30	±0.30-±0.50
2000×2000	8-30	±0.30-±0.50

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)	%	150
Dielectric strength(min)	KV/mm	10

[ Applications ]

Lining Bearing pads, seals, and electrical insulation.
